100 kW Solar Rooftop

Name: 100 kW Solar Rooftop
Brand: AVIRO ENERGY INDIA PRIVATE LIMITED
Price: 6500000.0 INR
Availability: InStock

Price 6500000.0 INR/ Piece

Get a Price/Quote

MOQ : 65 Pieces

100 kW Solar Rooftop Specification

Maintenance Type
Minimal - Cleaning & Periodic Inspection

Features
Net Metering, Zero Maintenance, Modular Design

Efficiency
>19.5% (Panel) / System Efficiency ~17%

Input Voltage
1000 V DC

Product Type
Solar Rooftop System

Material
High-Efficiency Monocrystalline Silicon

Number of Cells
144 (Per panel)

Power
100 kW

Operating Temperature
-40C to 85C

Max Voltage
1000 V DC

Max System Voltage
1500 V DC

Output Voltage
415 V AC 3-Phase

Cable Length
Customized as required

Switch Mode
On-Grid

Size
Depends on Panel Configuration

Dimension (L*W*H)
Panels: 2.0 m x 1.0 m x 40 mm (Each)

Color
Blue-Black (Panel) and Silver (Frame)

Weight
22 kg per panel

Application
Commercial, Industrial and Institutional Rooftops

Type Of Technology
Mono PERC

Installation Type
Rooftop Mounted

Inverter Type
String Inverter, 3-Phase Output

Wind Load Resistance
Up to 2500 Pa

Mounting Structure
Anodized Aluminium, Corrosion Resistant

Fire Rating
Class C or better

Grid Synchronization
Yes, With Utility Grid

Annual Generation Capacity
1,40,000 - 1,50,000 kWh/year

Panel Certifications
IEC 61215, IEC 61730, MNRE Approved

Protection Features
Over-Current, Short-Circuit, Surge Protection, Anti-Islanding

Monitoring
Remote Online (WiFi/GSM enabled)

About 100 kW Solar Rooftop

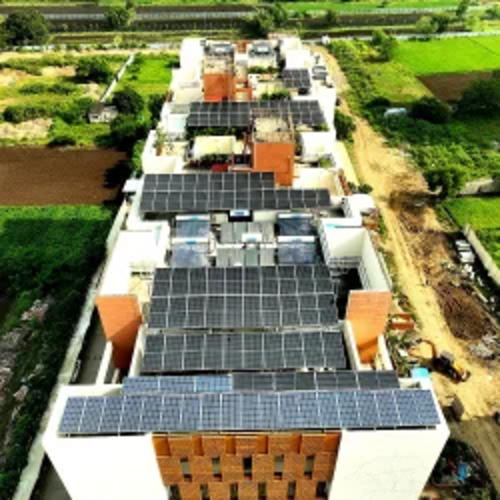

A 100 kW solar rooftop system is a commercial-scale solar power plant installed on rooftops of factories, malls, hospitals, warehouses, and large residential societies. It is one of the most popular capacities for businesses looking to cut electricity costs and achieve energy independence.

System Types

On-Grid: Most popular, no batteries, connects to the grid, best for lowering electricity bills.
Hybrid: Connects to the grid and uses batteries for power backup.

Implementation Process

Site Survey & Feasibility: Assessment of roof space and structure.
System Design: Designing the 100 kW layout.
DISCOM Approval: Net-metering application.
Installation & Commissioning: Mounting, wiring, and testing.
Operation & Maintenance (O&M): Regular cleaning and maintenance of panels.

Advanced Technology and Robust Build

Built with Mono PERC technology, these monocrystalline silicon panels deliver outstanding efficiency above 19.5%. The anodized aluminium mounting structure ensures corrosion resistance, excellent durability, and a fire rating of Class C or better, making it suitable for challenging Indian weather and industrial environments.

Comprehensive Safety and Certification

Safety is prioritized through features including over-current, short-circuit, surge protection, and anti-islanding. Certified with IEC 61215, IEC 61730, and MNRE approval, this rooftop solar solution promises not just performance but reliability and compliance with the strictest Indian and global standards.

Smart Monitoring and Minimal Maintenance

Monitor your system anytime, anywhere, with WiFi/GSM-enabled remote online access. Maintenance requirements are minimal-limited to routine cleaning and periodic inspections. The modular design also allows easy scalability or upgrades in the future without extensive structural changes.

FAQ's of 100 kW Solar Rooftop:

Q: How is the 100 kW solar rooftop system installed and what is the installation process?

A: The installation involves mounting high-efficiency Mono PERC panels on an anodized aluminium, corrosion-resistant structure tailored to your rooftop. After securing the structure and connecting the panels, a string inverter is installed for optimal energy conversion and grid synchronization. Certified installers handle system integration including wiring, inverter setup, and online monitoring configuration.

Q: What protection features are included to safeguard the system and users?

A: This solar rooftop system comes equipped with over-current protection, short-circuit protection, surge protection, and anti-islanding functionalities. These features collectively ensure operational safety for users as well as for the system itself, reducing the risk of electrical incidents and providing peace of mind.

Q: When can I expect to see energy generation and what is the annual energy output?

A: Once commissioned, the system starts generating electricity immediately during daylight hours. On average, you can expect an annual generation of 1,40,000 to 1,50,000 kWh, dependent on local sunlight conditions and maintenance consistency.

Q: Where can this solar rooftop system be used most effectively?

A: This system is best suited for commercial, industrial, and institutional rooftops with sufficient space and sunlight exposure. Typical applications include factories, warehouses, schools, offices, and other large buildings seeking reliable and cost-effective renewable energy solutions.

Q: What is the process for remote monitoring of the solar system?

A: With WiFi or GSM connectivity, the system enables remote online monitoring through a dedicated platform. Owners and operators can track real-time performance, generation statistics, and receive alerts for any irregularities-optimizing operational efficiency and reducing downtime through prompt maintenance.

Q: What are the main benefits of this 100 kW solar rooftop system?

A: Key advantages include high energy generation, robust safety features, minimal maintenance, and cost savings via net metering. The modular, corrosion-resistant design ensures longevity, while remote monitoring offers convenience and proactive management of your investment.
